GradientHound¶

Beta — core functionality is stable; some rough edges remain. See Known Limitations.

Post-training tooling to inspect PyTorch model architectures, gradients, weights, and optimizer state in real time. Drop a few lines into any training loop and get a live Dash dashboard showing gradient flow, weight health, spectral metrics, attention patterns, and more.

GradientHound integrates with weightwatcher, fvcore, torch-pruning, graphviz, and Cytoscape to provide a comprehensive view of model structure and training dynamics.

Known Limitations¶

Framework assumptions — the hook-based capture is tested primarily against standard PyTorch training loops. Custom autograd functions or compiled models (torch.compile) may require manual step calls.
torch.export coverage — FX graph export falls back to module-tree-only for models with data-dependent control flow or unsupported ops.
Scale — designed for research-scale models. Very large models (>1B parameters) may produce high-volume telemetry; use weight_every and log_activations=False to reduce write load.

dash

tools

weightwatcher

com

Install¶

pip install gradienthound            # core + model export
pip install gradienthound[torch]     # + PyTorch hooks
pip install gradienthound[dash]      # + standalone dashboard (Dash, Plotly, Cytoscape, wandb)
pip install gradienthound[spectral]  # + WeightWatcher-style spectral metrics (powerlaw)
pip install gradienthound[analysis]  # + FLOPs/pruning analysis (fvcore, torch-pruning)
pip install gradienthound[embeddings] # + t-SNE, UMAP, PCA layer embeddings (scikit-learn, umap-learn)

Quick Start¶

import torch, torch.nn as nn, gradienthound

model = nn.Sequential(nn.Conv2d(3, 32, 3, padding=1), nn.ReLU(),
                      nn.Flatten(), nn.Linear(32*32*32, 10))
optimizer = torch.optim.Adam(model.parameters(), lr=1e-3)

gradienthound.init(metadata={"lr": 1e-3, "batch_size": 32})
gradienthound.register_model("mymodel", model)
gradienthound.register_optimizer("adam", optimizer)
gradienthound.watch(model, name="mymodel")

for epoch in range(100):
    out = model(torch.randn(8, 3, 32, 32))
    loss = nn.functional.cross_entropy(out, torch.randint(0, 10, (8,)))
    optimizer.zero_grad(); loss.backward(); optimizer.step()
    gradienthound.step()

gradienthound.shutdown()

With wandb: call gradienthound.capture_wandb() after init() to auto-capture wandb.log() scalars.

API¶

Function	What it does
`init(metadata=None)`	Start a capture run.
`register_model(name, model)`	Register an `nn.Module` for architecture viz.
`register_optimizer(name, optimizer)`	Register an optimizer for state inspection.
`watch(model, name, log_gradients=True, log_activations=False, weight_every=50)`	Attach hooks for automatic gradient/activation capture.
`step(step=None)`	Flush buffered stats. Call once per training step.
`log_weights(name=None)`	Force an immediate weight snapshot.
`log_attention(name, weights)`	Log an attention matrix for heatmap viz.
`log_predictions(predicted, actual, name="default")`	Log predicted vs actual for calibration plots.
`capture_wandb()`	Monkey-patch `wandb.log()` to also feed GradientHound.
`shutdown()`	Clean up hooks and close the run.
`export_model(model, example_inputs, output, ...)`	Export model graph to `.gh.json` for offline viewing.

Standalone Dashboard¶

python -m gradienthound --model model.gh.json                     # exported model
python -m gradienthound --model ./exports/                        # search directory for .gh.json
python -m gradienthound --checkpoints ckpt1.pt ckpt2.pt ckpt3.pt  # checkpoint comparison
python -m gradienthound --checkpoints ./checkpoints/              # search directory for .pt/.pth/.ckpt
python -m gradienthound --port 9000 --debug                       # custom port + hot-reload

Combine flags freely: --model, --checkpoints, --wandb-entity/--wandb-project-run-id.

Dashboard Pages¶

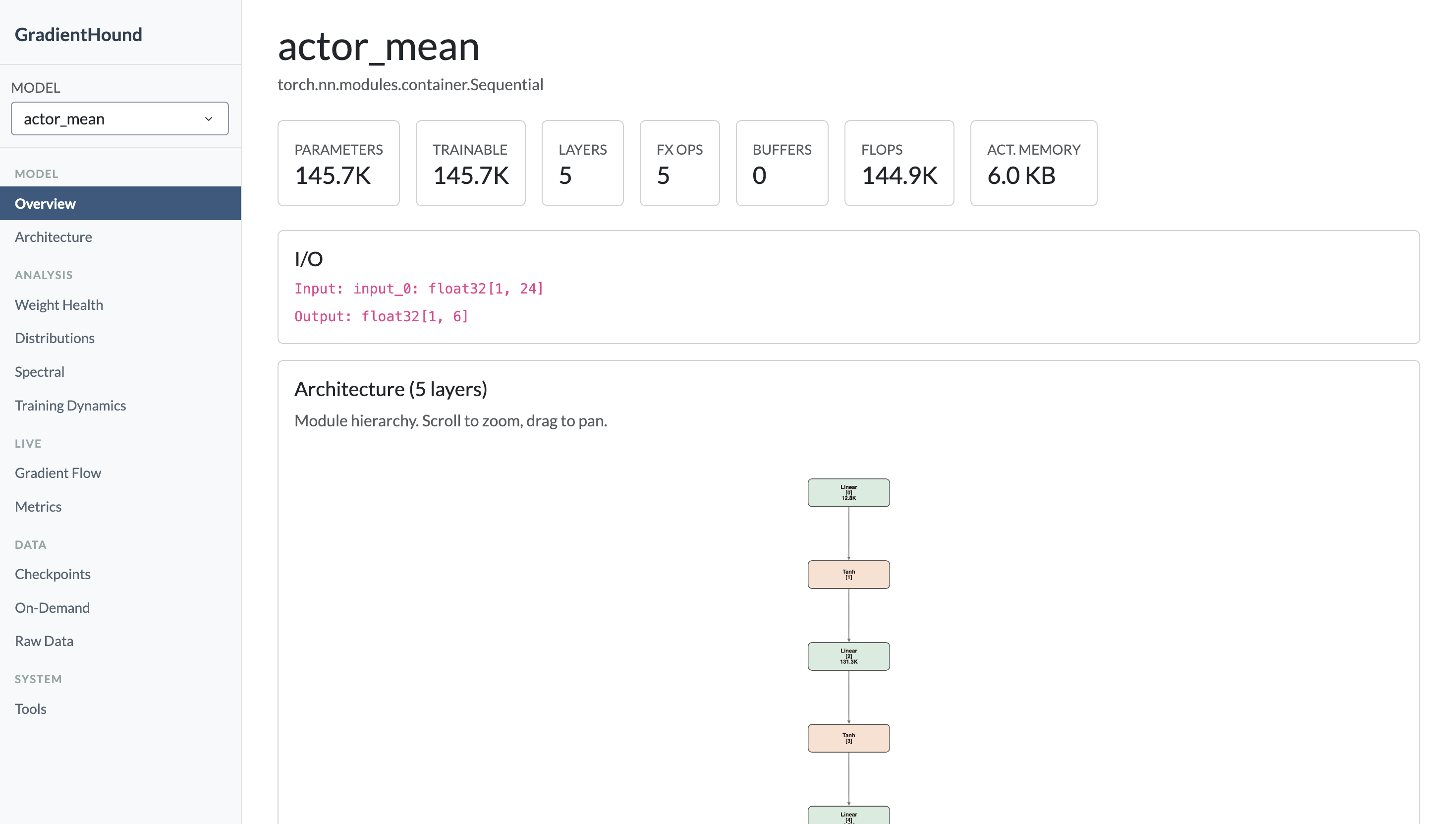

Dashboard (main page)¶

Model overview: stat cards (params, FLOPs, activation memory, checkpoint count, health counts), I/O summary, and live analysis sections (FLOPs breakdown, activation memory per module) when available.

When checkpoints are loaded, the dashboard shows all analysis sections below.

Architecture¶

Interactive Cytoscape.js graph of the module hierarchy. Nodes colored by type (conv, linear, norm, activation, pool, dropout, embedding). When checkpoints are loaded, nodes are health-colored (healthy/warning/critical) based on weight statistics. Click any node to see per-parameter details with mini histogram and SVD plots.

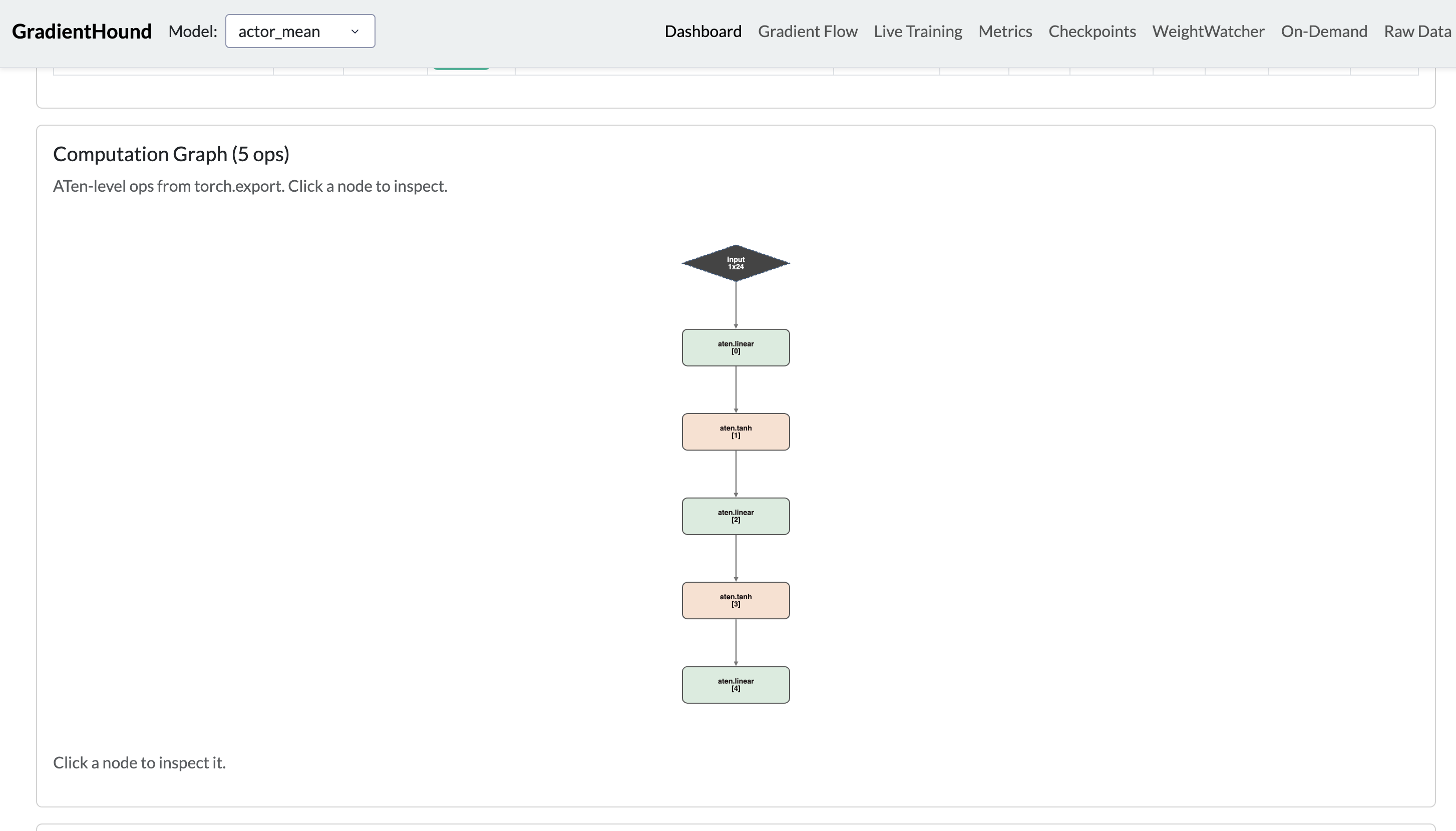

Full ATen-level FX computation graph shown when torch.export data is available.

Checkpoints¶

Select and process checkpoint files with wildcard filtering. Displays optimizer state cards and spectral summary.

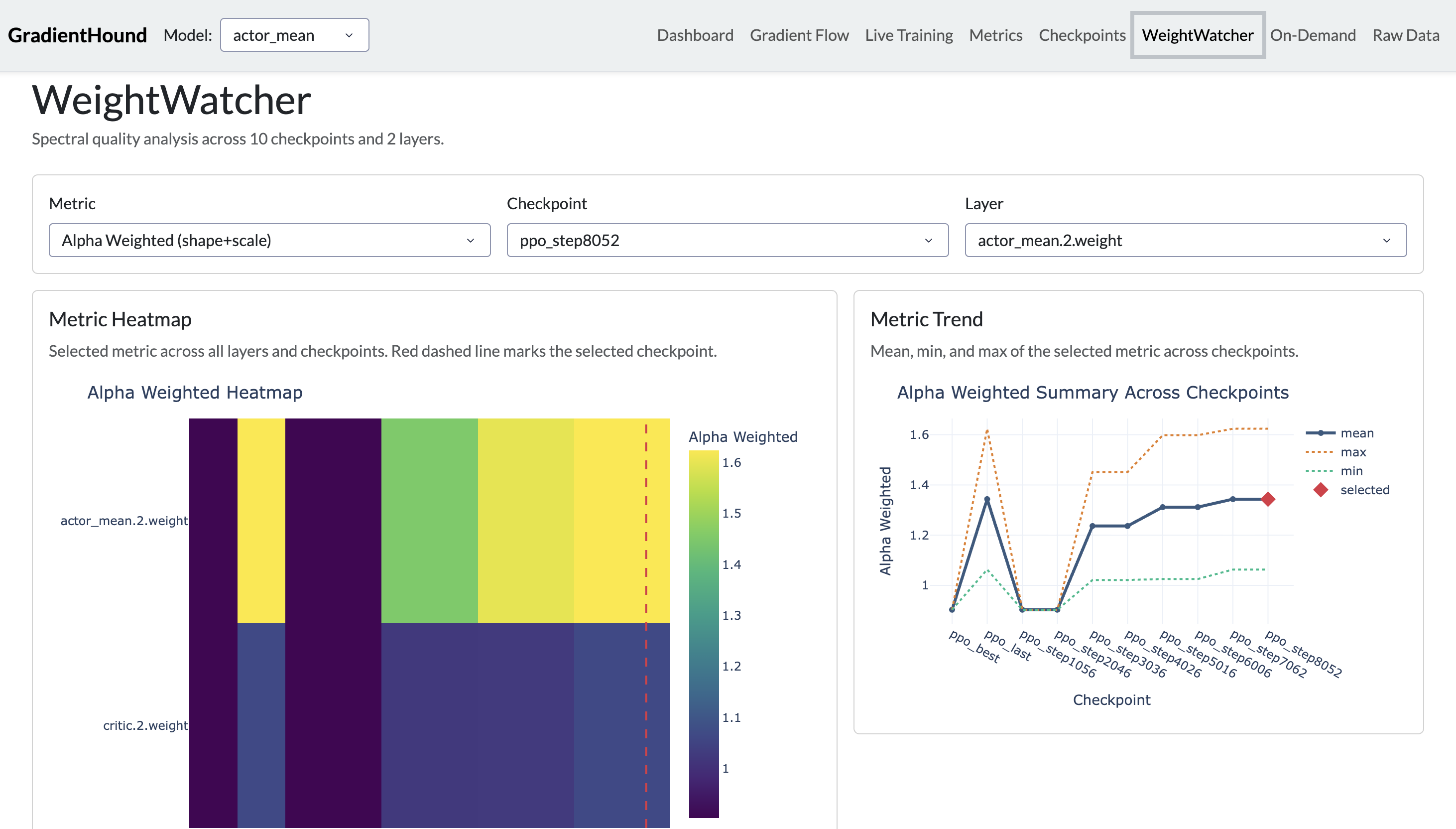

WeightWatcher¶

Deep spectral analysis: global metric views (alpha, mp_softrank, etc.), heatmaps across layers and checkpoints, per-layer ESD plots. Requires the powerlaw package.

Gradient Flow¶

Gradient norm evolution across layers over training steps, cosine similarity between gradient steps, update ratios, dead neuron detection.

Metrics¶

Time-series charts for scalars logged via wandb or directly.

Embeddings¶

t-SNE, UMAP, and PCA projections of per-layer weight statistics. Each layer becomes a point in 2D; proximity means similar weight characteristics (norm, kurtosis, effective rank, etc.). With multiple checkpoints, arrows trace each layer's trajectory through training. Controls for method, perplexity/neighbors, and coloring by checkpoint, layer type, or depth. PCA works with no extra dependencies; t-SNE requires scikit-learn, UMAP requires umap-learn.

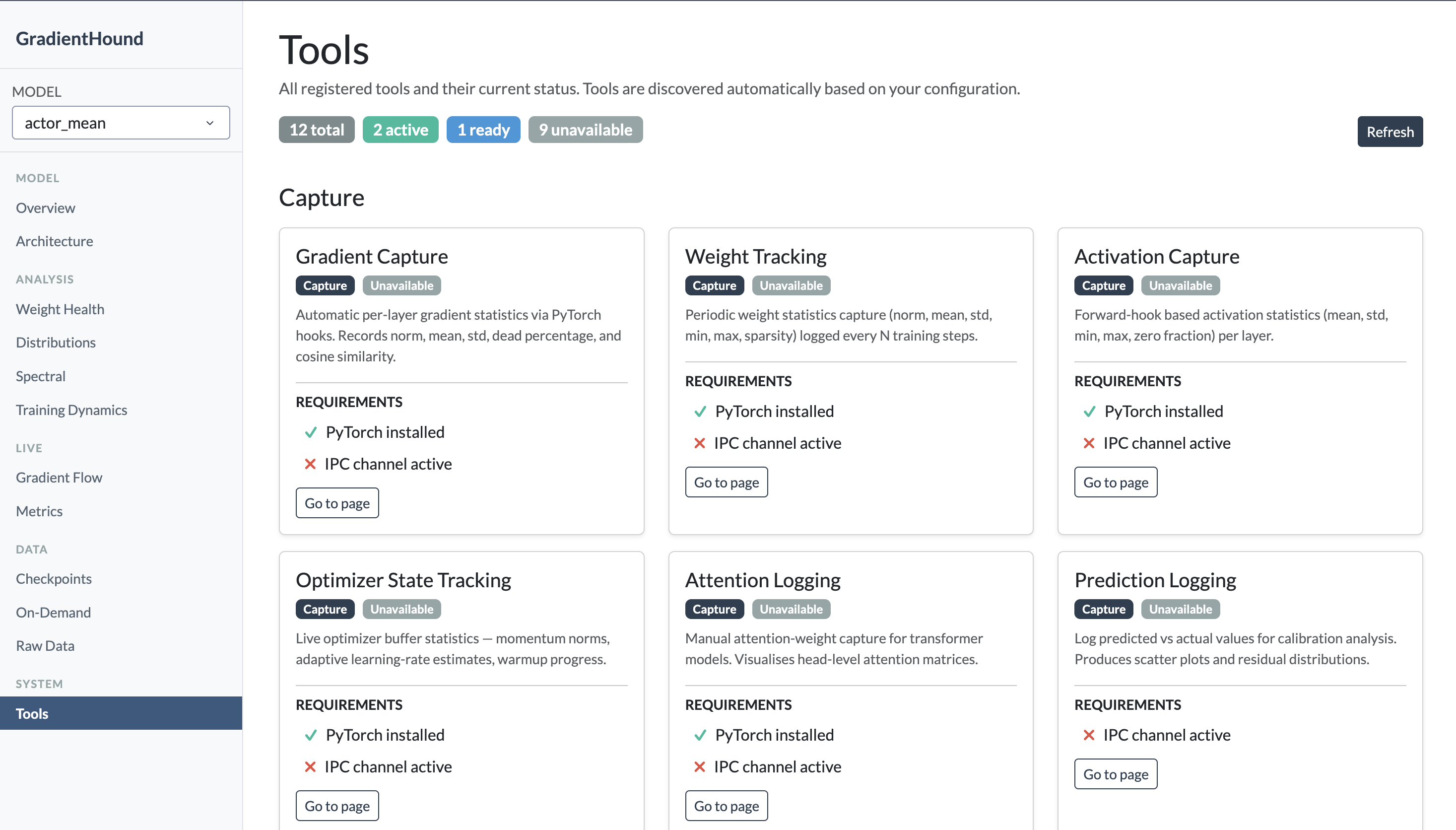

Tools¶

Status dashboard showing all available capture, analysis, on-demand, and integration tools with their dependency status and links to relevant pages.

Checkpoint Comparison Analysis¶

All of the following are computed purely from checkpoint .pt files (no forward pass or training data needed). Pass checkpoints via --checkpoints.

Per-Parameter Statistics¶

Computed for every tensor in each checkpoint:

Basic: L2 norm, Frobenius norm, mean, std, min, max, near-zero %, element count, shape, kurtosis
Histogram: 80-bin weight distribution
Weight entropy: Shannon entropy of the distribution histogram
SVD (2D weights): singular values, cumulative energy, stable rank, condition number, effective rank
Spectral (requires powerlaw): alpha, alpha_weighted, log_spectral_norm, mp_softrank, num_spikes, lambda_plus, ESD

Cross-Checkpoint Drift¶

Computed between consecutive checkpoints (requires raw tensor access):

Cosine similarity of flattened weights
Subspace overlap of top-k right-singular vectors
Linear CKA similarity (optional, for 2D weights)
True update ratio: ||W_t - W_{t-1}|| / ||W_{t-1}|| (captures rotational changes that norm-difference misses)
Delta norm: ||W_t - W_{t-1}||
Delta direction consistency: cosine similarity between consecutive weight updates -- oscillating directions indicate LR too high or saddle points

Initialization Distance¶

Per-layer distance from the first checkpoint:

L2 distance, relative distance (||W_t - W_0|| / ||W_0||), and cosine similarity vs init
Shows which layers moved most from initialization vs barely trained

Anomaly Detection¶

Automatic detection of suspicious transitions:

Rank collapse: effective rank ratio drops below 60%
Kurtosis spikes: absolute kurtosis change > 2.0
Norm jump outliers: L2 norm change > 2.5 robust standard deviations

Spectral Gap Ratios¶

sigma_i / sigma_{i+1} for top-5 singular values. A growing gap between sigma_1 and sigma_2 signals rank-1 collapse. In attention layers, gaps relate to effective head count. Shown as summary chart, table, and per-layer detail with grouped bar chart.

Norm Velocity & Acceleration¶

First and second discrete derivatives of L2 norm across checkpoints. Negative acceleration + positive velocity = convergence. Shown as dual-axis chart and a convergence map heatmap (green = converging, red = diverging).

Convergence Score¶

Composite 0-100 score per layer combining cosine stability, rank stability, kurtosis stability, norm velocity, and mp_softrank trend. Shown as a summary line chart and green-yellow-red heatmap.

Training Phase Detection¶

Automatic segmentation of the checkpoint timeline into phases (learning, plateau, instability) based on aggregate norm change intensity and cross-layer variance. Shown as a phase table with colored labels.

Cross-Layer Update Correlation¶

Pairwise Pearson correlation of weight deltas between all 2D layers. Reveals which layers co-evolve (shared gradient signal) vs evolve independently. Shown as a heatmap for the latest transition.

Singular Value Turnover¶

Fraction of top-k singular vectors without a strong match (overlap < 0.8) in the previous checkpoint. Also tracks principal direction stability (leading singular vector). High late-training turnover indicates the layer hasn't converged.

Optimizer State Analysis¶

When optimizer state is present in checkpoints:

Type inference (Adam, SGD, RMSprop, Adadelta)
Per-group hyperparameters (LR, betas, momentum)
State buffer statistics (exp_avg norms, exp_avg_sq means)
Effective learning rate estimation: lr / (sqrt(avg_second_moment) + eps)
Bias correction and warmup progress

Model Export¶

Export the computation graph for offline visualization (no weights saved):

gradienthound.export_model(
    model,
    example_inputs,         # tuple of tensors
    output="model.gh.json",
    dynamic_shapes=None,    # optional, passed to torch.export
    strict=True,            # False for data-dependent control flow
)

The .gh.json contains: module tree, FX computation graph (ATen ops with shapes/dtypes), dataflow edges (including skip connections), parameter metadata, and graph signature.

Falls back to module-tree-only if torch.export fails.

License¶

MIT
